Brief Introduction

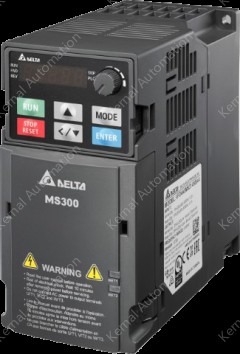

VFD4A2MS43AFSAA

Input Power (V) 460V 3-Phase Output Current (A) 4.20 Control methods IMVF ; IMVFPG ; IMSVC (Space Vector Control) ; IMFOC (Field Oriented Control) Sensorless ; PMSVC Built-in EMC filter Yes Built-in DC reactance No Built-in brake crystal Yes Motor Power (kW) 1.50 Degree of protection IP20 ; IP20/UL Open Type version Wall Mount Safe torque shut-off Yes Motor type Induction Motor(IM) ; Interior Permanent Magnet Motor(IPM) ; Surface Permanent Magnet Motor(SPM) Numeric Inputs (points) 7 Digital Outputs (Points) 2 Relay Outputs (points) 1 Analog Input 0~10V (points) 1 Analog Input: -10~10V (points) 1 Analog Input 0~20mA (points) 1 Analog Input: 4~20mA (points) 1 Analog output 0~10V (points) 1 Analog output -10~10V (points) 0 Analog output: 0~20mA (points) 1 Analog output: 4~20mA (points) 1 Degree of contamination 2 Humidity (%) 90.00 The type of load Constant Torque ; Fan & Pump Application The type of work style Normal Duty ; Heavy Duty Built-in PLC Yes Support external power supply card Yes No. 1 slot card Yes Slot 2 card No No. 3 slot card Not Available Minimum Carrier Frequency (kHz) 2 Maximum Carrier Frequency (kHz) 15 Maximum Output Frequency (Hz) 599.00 Drive type Single Drive Type of inverter module Single Axis Rectifier module type Not Applicable Component type Inverter Module The inverter module is driven into the voltage Not Applicable Built-in motor Not Applicable
